Rent roove cutter for hard materials

Rental Rates Including VAT and Deposit

Half day: €24
Full day: €32
Weekend: €48
Deposit: €100

Half Day

A half day is a maximum of 4 hours.
Morning pickup is at 08:30 with return before 12:30,
or afternoon pickup at 13:00 with return before 17:00.

Weekend

Weekend rental starts with pickup on Saturday morning and return on Monday morning before 09:00.
If the rented item is returned before 09:00 on Monday morning, the rental period and fee will be adjusted from 2 days to 1.5 days.

Diamond Wear Costs

The rental rate excludes diamond wear costs of €7.50 per 0.1 mm.
A minimum of 0.1 mm will always be charged when used.

Instruction Video

https://www.youtube.com/watch?v=l554zu83hag

General

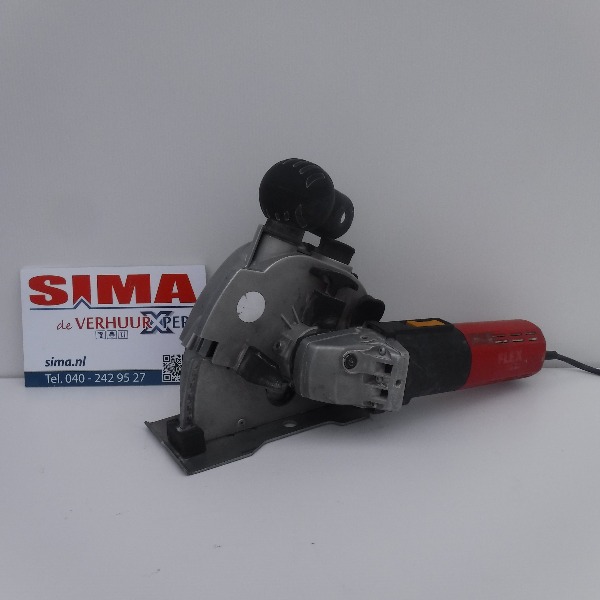

Chaser saw machine with 2 diamond blades for making straight grooves in concrete and other hard materials.
The groove has a maximum depth of 2.5 cm and a width of 2.5 cm.
The wall chaser can only be used dry, which means a fine-dust vacuum must always be attached.
This fine-dust vacuum can also be rented from us.

Features MS 1706 FR

• 4-stage FR electronics: with speed control via tachogenerator, soft start, overload protection, and temperature monitoring

• Rotatable patented motor (EP1693169)

  • Allows both pushing and pulling cuts

• Optimal dust extraction and maximum safety due to closed protective cover

• Tool-free blade change and width adjustment

• Rotatable suction port

• Tool-free cutting depth adjustment

• Plunge lock

• Cuts two parallel grooves up to 25 mm deep and 20 mm wide

• Burr remover for easy burr removal without a hammer

Technical Specifications MS 1706 FR

• Cutting depth: 0–25 mm

• Groove width: 10–20 mm

• Blade diameter: 140 mm

• No-load speed: 7500 rpm

• Power input: 1400 W

• Power output: 950 W

• Tool mount: M14

• Weight: 4.6 kg
